Set up Single Sign-On (SSO) in Azure

For setting up single sign-on in Azure, perform the following steps.

To set up single sign-on:

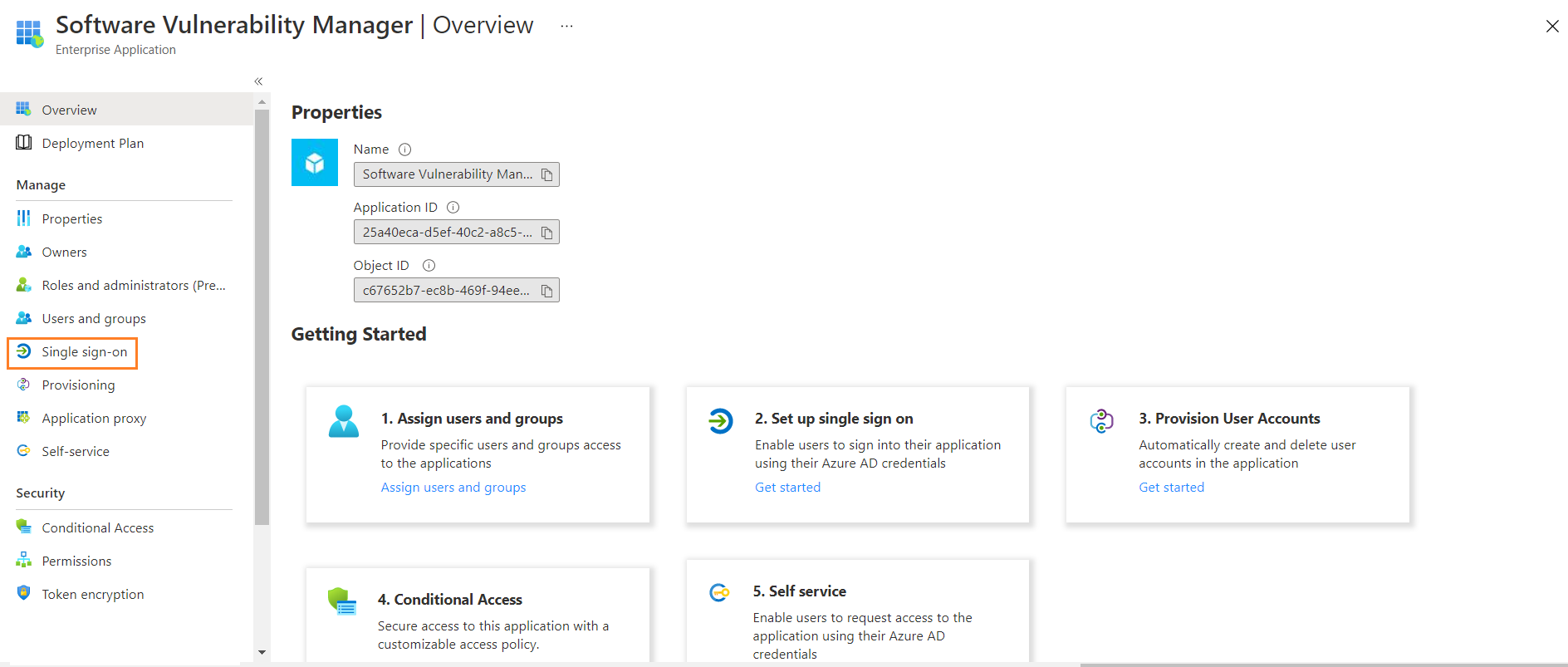

  1. On the application account details page, select Single sign-on from the left panel. You can also select from the Overview page by clicking Get started link.

  2. Click SAML.

  3. The Set up Single Sign-On with SAML page appears. Under SAML Signing Certificate field copy Metadata URL, login to Software Vulnerability Manager, browse Configuration >Settings > Service Provider Configuration, and then check SSO Enabled. Select Provide IdP Metadata URL and paste the copied URL into the text box.

    To create an auto user - select the Automatically create new user check box and then select the template user from the drop-down.

  4. Generate an account key from the Software Vulnerability Manager Configuration > Settings > IdP Configuration Instructions and then click Save Service Configuration button. Click Ok and agree the confirmation dialog which appears.

  5. Copy the following from the Software Vulnerability Manager Configuration > Settings fields and paste in the Azure Single sign on > Set up Single Sign-On with SAML > Basic SAML Configuration:

    • Single Sign On URL (Same with Recipient URL and Destination URL) to Reply URL (Assertion Consumer Service URL).

    • Single sign on URL and Audience URL (SP Entity ID) to Identifier (Entity ID).

    After selecting the details click Save.

    note

    Metadata URL cannot be used for the multiple applications.

  6. Edit the User Attributes & Claims:

    • Click Edit.

    • The User Attributes & Claims page appears.

    • Delete all old attributes and claims by clicking the context menu icon.

    • Click + Add New claim to add new attributes and claims.

    • The Manage claim page appears.

    • Enter name in the text field.

    • Select the source attributes from the drop down list.

    • After selecting, click Save.

    Follow the above steps and add attributes and claims for the following:

    • firstName

    • lastName

    • email

    • username

    • accountKey

      note

      While selecting accountKey attributes paste the generated Account key which is copied from the Software Vulnerability Manager Configuration > Settings > IdP Configuration Instructions.

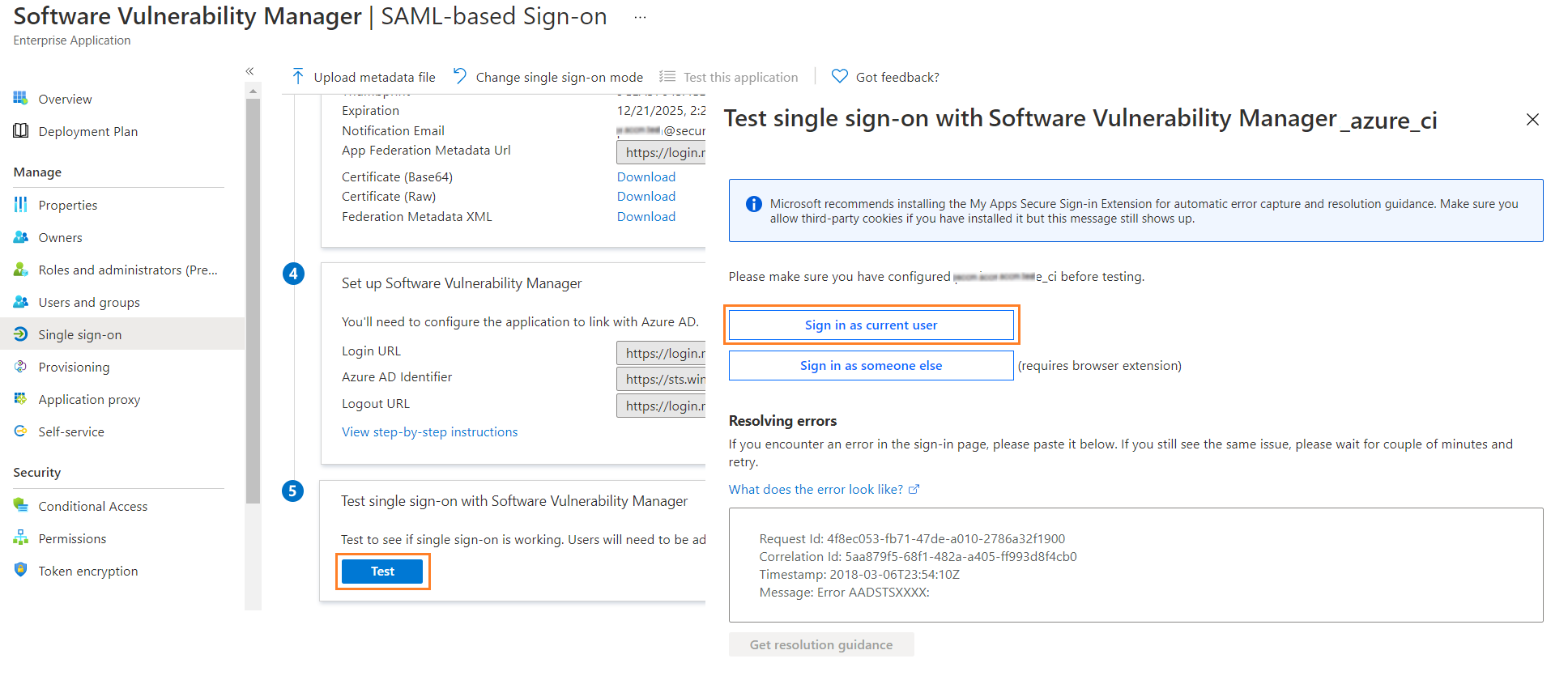

  7. After configuring, click Test, and then click Sign in as current user link.

  8. After successful action it navigates to the Software Vulnerability Manager application.

note

You can also access through the Service Provider (SP) login for the created application by using the assigned user.
